| Brand Name: | Scree |
| Model Number: | P3.91 |
| MOQ: | 2 |
| Price: | $280-$300 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 500 |

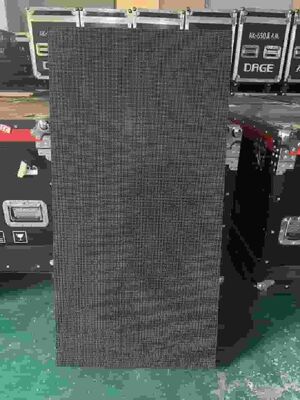

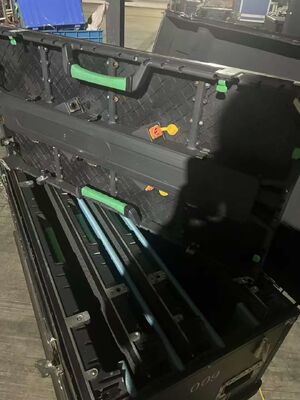

The Cisco P3.91 outdoor LED screen is a die-cast aluminum waterproof full-color LED screen, available in rental and fixed installation versions. It features a standard 500×500mm cabinet, IP65 all-weather protection, high brightness, and a high refresh rate. Suitable for outdoor commercial performance rentals, outdoor advertising, cultural tourism outdoor large screens, and other scenarios, it offers high-definition, pixel-free display at close range, easy installation and disassembly, and ripple-free image capture.
| Parameter Item | Specification Value |
|---|---|
| Pixel Pitch | P3.906mm (abbreviated as P3.91) |
| Pixel Density | 65536 dots /㎡ |
| Pixel Ratio | 1R1G1B SMD Outdoor LED Beads |
| Module Size | 250mm×250mm |
| Module Resolution | 64×64 pixels |
| Single Module Weight | 0.23kg |
| Scanning Method | 1/16 Constant Current Drive |
| Parameter Item | Specification Value |
|---|---|
| Standard Cabinet Size | 500mm×500mm |
| Cabinet Resolution | 128×128 pixels |
| Single Cabinet Area | 0.25㎡ |
| Cabinet Material | High-precision CNC die-cast aluminum |
| Single Cabinet Weight | 7.3kg±0.05kg |
| Cabinet Thickness | 85mm |
| Splicing Tolerance | ≤0.05mm |
| Splicing Structure | 4 sets of stainless steel quick locks, supporting internal and external curved splicing |
| Cable Configuration | 1.3m Integrated cable routing |
| Parameter Item | Specification Value |
|---|---|
| Outdoor Brightness | ≥5000cd/㎡ |
| Refresh Rate | 1920–3840Hz |
| Grayscale | 16bit |
| Horizontal Viewing Angle | ≥160° |
| Vertical Viewing Angle | ≥140° |
| Contrast Ratio | ≥5000:1 |
| Optimal Viewing Distance | 3m–60m |
| Parameter Item | Specification Value |
|---|---|
| Protection Rating | IP65 (Front-facing waterproof and dustproof) |
| Operating Ambient Temperature | -20℃ ~ +55℃ |
| Heat Dissipation Method | Die-cast aluminum hollow passive heat dissipation, fanless and silent |
| Sealing Process | Module potting + cabinet silicone sealing ring |
| LED Anti-aging | UV protection |
| LED Theoretical Lifespan | 100,000 hours |
| Mean Time Between Failures (MTBF) | >10,000 hours |
| Parameter Item | Specification Value |
|---|---|
| Input Voltage | AC110V/220V Universal |
| Peak Power Consumption | ≤800W/㎡ |
| Average Power Consumption | 400–500W/㎡ |
| Control System | Nova/Carlette synchronous system; optional 4G/WiFi asynchronous offline playback |
| Maintenance Method | Front maintenance + rear maintenance dual mode |
| Certification Type | Qualifications |
|---|---|
| Domestic Certification | CCC |
| Export Certification | CE, RoHS |
