P2 128*256 Indoor Full Color LED Video Wall High Definition Display 256000 Dots/㎡ High Gray No Flicker Screen For Studio Meeting Room Retail Store

I. Basic Specifications Explanation (Core Parameters)

Pixel Pitch P2

The center-to-center distance between adjacent LED beads is 2mm, belonging to indoor small-pitch high-definition screens, with a pixel density of 250,000 dots/㎡, and no graininess when viewed at close range.

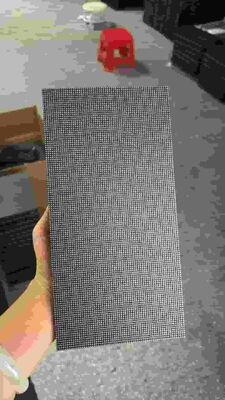

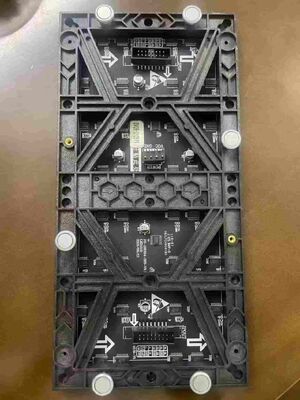

Module Specifications

Single Module Resolution

128 dots (width) * 64 dots (height) (Commonly referred to in the industry as a 128*256 module, corresponding to physical dimensions of 256mm width * 128mm height)

Module Physical Dimensions

256mm (W) * 128mm (H), thickness 8.5–10mm, slim and integrated design

LED Chip Package

SMD1515/2121 three-in-one 1R1G1B full-color LED chip, high contrast with black mask

Drive Scan

1/32 constant current dynamic scan, low heat generation, flicker-free image, suitable for live streaming without water ripples

II. Optical Display Performance (High-Definition Core Advantages)

Brightness

800–1200cd/㎡, 256-level software stepless dimming, not glaring in conference rooms, live streaming rooms, and exhibition halls; retains high grayscale in low brightness, clear image detail in dark scenes

Grayscale and Color

Standard 14–16bit Grayscale, capable of displaying 1.07 billion colors, with realistic color reproduction and exquisite details in portraits, images, and videos; supports single-point brightness/color correction, with no color difference or splicing artifacts across the entire screen.

Viewing Angle

160° horizontal and 140° vertical ultra-wide viewing angles, with no color or brightness attenuation when viewed from the side.

Optimal Viewing Distance

2–20 meters; even at a close distance of 1.5 meters, text and charts remain clear; the image on the large screen is transparent and uniform from a distance.

Refresh Rate

3840Hz for the high refresh rate version, 1920Hz for the standard version; flicker-free and moiré-free for live streaming, video recording, and video recording, making it the first choice for studios and live streaming rooms.

III. Electrical and Structural Parameters

Single Module Power

Approximately 20W; average power consumption of the entire screen: 230–300W/㎡; maximum power consumption: 750W/㎡; energy-saving.

Power Supply

Module low voltage DC5V, entire screen 220V. AC input, stable and secure

Splicing accuracy

Module splicing gap < 0.1mm, screen flatness ≤ 0.2mm, seamless integrated large screen appearance

Lifespan

Theoretical 100,000 hours, mean time between failures (MTBF) 9,000 hours, stable and durable

Operating environment

Indoor use only, temperature -10℃~+45℃, moisture-proof and dustproof, not for outdoor use
