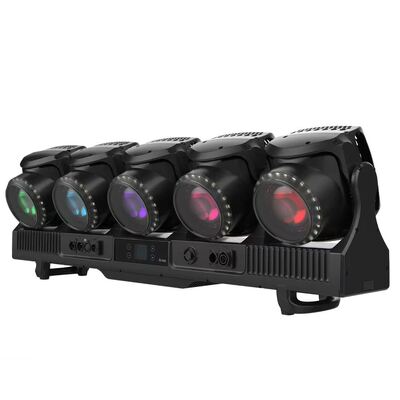

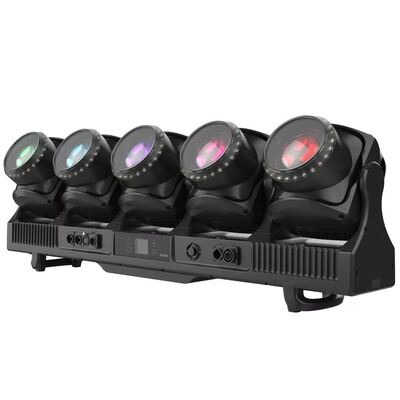

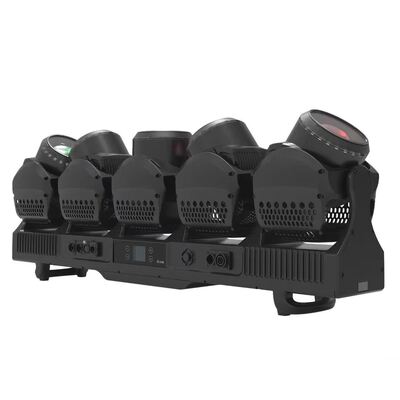

ACME TB5 IP Tornado Moving Head Light 5×120W RGBL LED Beam Matrix Light IP66 Outdoor Waterproof Stage Effect Lighting

The ACME TB 5 IP is a five-head independent moving-head waterproof LED beam matrix light, commonly known in the industry as the "Tornado," designed specifically for large concerts, music festivals, outdoor cultural tourism, and variety show studios. Each of the five light heads can move independently in the X and Y directions, offering sharp beams, color variations, and pixelated ambient lighting. It boasts IP66 all-weather waterproof rating, making it suitable for both indoor and outdoor use, and is a mainstream matrix effect light for touring and outdoor projects.

• 5*120W RGBL four-in-one LEDs, with independent color control, dimming, and zoom per head; total luminous flux of 13,000 lumens, and a light source lifespan of 20,000 hours (ACME LIGHTING).

• Each light head features 120 0.5W RGB LEDs on its outer ring, with independent zone control, capable of displaying color bars, flowing water, and strobe pixel effects, enriching the image's depth.

• Linear CTO stepless color temperature adjustment: 2500K～8000K, one-button switching between warm and cool light, supports color calibration, and includes a built-in color macro program.

• 3°～30° linear focusing, producing an extremely fine and sharp beam at long distances.

• 4°～35° wide-range soft light diffusion.

Fast zoom response, seamless switching between beam and color, suitable for both near and far fields, maintaining high illumination even at a distance of 20 meters.

• Horizontal Pan: 59°
• Vertical Tilt: 221°

16-bit high-precision stepper motor, smooth and jitter-free movement, automatic reset and correction upon power-on.

5 lamp heads can move synchronously or separately, creating dynamic light effects such as waves, chasing, and intertwined tornadoes.

• Protection Rating IP66: Rainproof and dustproof, no need for rain shelters for open-air music festivals and outdoor performances.
• Integrated sealed body structure, waterproof power supply/waterproof five-core DMX, RJ45 network port.
• Body with quick-connect splicing lock, multiple units can be seamlessly spliced ​​horizontally to form an ultra-long light strip matrix.
• Lifting/ It can be used both flat and horizontally, comes standard with safety anchors, and is suitable for truss array layouts.
