Jinzhihui 400BWS 380W BSW 3in1 Moving Head Light Linear CMY Zoom Gobo Prism Professional Stage Disco Light

Brand Name:	Jinzhihui
Model Number:	400BWS
MOQ:	2
Price:	$180-$200
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

China

Category:

Does It Have CMY Functionality:

Spot Inventory:

Wattage Of The Light Source:

Condition Percentage:

Packaging Details:

flying box

Supply Ability:

Highlight:

380W moving head light

3in1 stage light CMY zoom

professional disco light with prism

Product Description

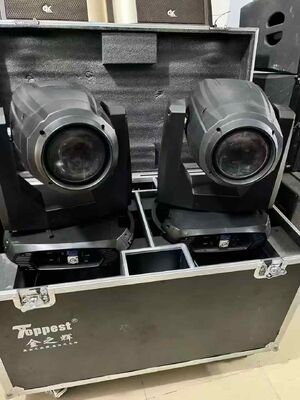

The Jinzhihui 400BWS is a 380W HID beam/pattern/color BSW three-in-one moving head light, a mainstay model for industry tours, bars, weddings, and small to medium-sized performances; it has a large second-hand market, comes standard with an aviation case, and has a bulb life of approximately 4000 hours. It combines sharp beams, high-definition patterns, and large-area soft light coloring, making it a high-performance alternative to multiple single-function moving head lights.

II. Core Light Source and Electrical Parameters

Light Source: MSD Silver 380W LL Short-Arc Gas Lamp

Standard Lifespan: 4000 hours

Color Temperature: 6500K, High Brightness, Sharp Beam Cutting

Power Supply: AC100–240V Wide Voltage 50/60Hz

Total Power: Maximum 520W, Power Factor PF≥0.98

Signal Interface: Standard DMX512 3/5-pin XLR, Supports RDM Remote Addressing, USB Online Programming

Heat Dissipation: Intelligent Temperature Control Fan, Automatic Overheat Protection, Indoor IP20 Protection

III. Optical Zoom System (BSW Three-Mode Independent Zoom)

Beam Mode: 3°–36°, Narrow Beam, Thin Beam with Strong Penetration, Explosive Beam Effect in the Air

Spot Mode: 3°–36°, High-Definition Imaging, Clear Projection of Logos and Patterns from a Distance

Wash Mode: 4°–40° Wide-angle soft light, independent fogging sheet, even and soft stage color application.

Full set of high-definition anti-reflective optical lenses, linear electric focus, no blurring of near and far light spots.

IV. Color System (Dual Color Scheme)

Fixed Color Wheel: 14 color gels + white light, built-in multiple CTO color temperatures (2700K/3200K/6500K), bidirectional rainbow flow, gradient, random color jump.

Linear CMY Infinite Color Mixing: Independent linear gradient of cyan, magenta, and yellow, capable of producing tens of thousands of pure and light colors, without impurities or color banding, flicker-free live broadcasts in the studio.

V. Pattern Effects Panel

Rotating Pattern Panel: 12 colored glass patterns, bidirectional rotation, shaking, and flowing animation, supports layered prism overlay.

Fixed Pattern Panel: 11 static graphics + 7 sets of white circular light effects, quick switching between geometric, starry sky, petal, and text backgrounds.

VI. Prism and Special Effects System

Dual Prism Combination: 8-faceted single prism + composite 8+16 Double-prism, usable individually or stacked, rotates in both directions

Independent atomizing plate: one-button soft light, dedicated to color and surface lighting modes

Dimming: 0–100% linear smooth dimming, 4 dimming curves suitable for performances/live broadcasts

Strobe: 0–13Hz high-speed adjustable, synchronous/asynchronous/random pulse strobe, flicker-free camera shooting

VII. Head-Motion System

Horizontal Pan: 540° wide-range rotation, 16-bit high-precision positioning, electronic automatic correction

Vertical Tilt: 270° pitch angle, smooth and jerky movement

Quiet motor design: suitable for weddings and indoor theaters with low noise requirements

Built-in auto-program: master-slave synchronization, console reset macro function
