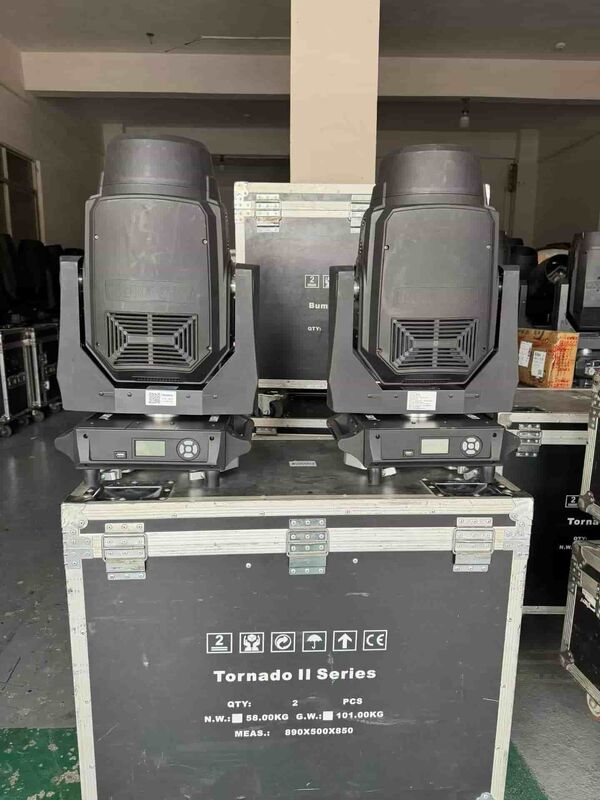

Professional Hybrid Moving Head Light 470W 18R LED Moving Head Light SKYF500BSW

Professional Hybrid Moving Head Light 470W 18R LED Moving Head Light SKYF500BSW

Brand Name: SKY
Model Number: F500
MOQ: 2
Price: $35-$50
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Name:
Hybrid Moving Head Light
Category:
BSW
Wattage Of The Light Source:
470W
Accessories:
Light Hooks, Safety Ropes, Power Cords, Signal Cables
Model:
F500BSW (SKYF500BSW)
Color Temperature:
7800K
Packaging Details:
flying box
Highlight:

Professional Hybrid Moving Head Light

,

Hybrid Moving Head Light 470W

,

18R LED Moving Head Light

Product Description

Professional 470W 18R SKYF500BSW Hybrid Moving Head Stage Light Prism Pattern Color Effect High Brightness For Theater Live Show Party Stage Decoration Light

I. Basic Parameters

Model: F500BSW (SKYF500BSW)

Light Source: Osram/Shenglong NSL-470W Platinum Bulb (18R)

Color Temperature: 7800K, Color Rendering Index (CRI) ≥ 91.3

Luminous Flux: ≥ 20000lm, Illuminance at 10m: Approximately 420,000 lux

Lifespan: 1500 hours (up to 6000 hours in energy-saving mode)

Input Voltage: 100–240V AC, 50/60Hz

Power: 700W (PF=0.985)

Protection Rating: IP20 (Indoor)

Net Weight/Gross Weight: Approximately 22kg/25kg

Dimensions: 410*370*650mm

II. Optics and Effects System
Zoom and Light Output
  • Large-diameter 160mm optical lens
  • Beam Patterns: 2°–21°; Pattern Patterns: 3°–42°; Tint Patterns: 1°–5°
  • Dual focus adjustment + autofocus, uniform bokeh without black edges
Color System
  • 11 color palettes + 2 CTO + white light, bidirectional rainbow, halftone effects
  • Linear CMY color mixing, wide color gamut, vibrant colors
Pattern System
  • Fixed Pattern Pad: 10 patterns + white light + flowing animation effects
  • Rotating Pattern Pad: 7 interchangeable glass patterns, rotation/shaking/indexing
  • Dynamic Effects Pad: Water ripples, flames, and other effects
Prisms and Fog
  • Standard configuration: 3+1 dual prisms (8 prisms + 16 prisms), bidirectional variable speed rotation, stackable
  • Secondary Fog: Light fog 1°, heavy fog 5°, uniformly softened light spot
Dimming / Strobe / Aperture
  • 0–100% flicker-free linear dimming
  • High-speed strobe: 0.3–25 times/second, pulse/random/synchronous
  • Motorized aperture: 5%–100%, variable pulse and random effects
III. Scanning and Control
  • Scanning angle: Horizontal 540°, Vertical 250° (16-bit precision, electronic error correction)
  • Motors: 23 ultra-quiet motors, three-phase drive
  • Control channels: 21CH (simplified)/27CH (standard)/32CH (extended)
  • Control modes: DMX512, RDM, master-slave, auto-run, voice control
  • Display: LCD backlit screen, 180° invertable, USB software upgrade
IV. Core Advantages
  • Hotspot elimination: Built-in hot-spot protection to prevent objects from being burned by high temperatures
  • Ultra-quiet operation: 23 silent motors, suitable for theaters/ Studio Lighting
  • High CRI: CRI≥91.3, accurate color reproduction
  • High-power long-range projection: 470W, sufficient brightness, 420,000 lux illuminance at 10m, covering large venues
V. Typical Applications
  • Large-scale concerts, stadium tours, theater performances
  • High-end bars/clubs/electronic music festivals (all-around beam + pattern + color-changing)
  • Weddings, press conferences, auto shows, cultural tourism real-scene lighting
